Turbochargers suit Hyundai iLoad iMax H1 H-1 2.5L K03 28200-4A480 BILLET UPGRADED

Description

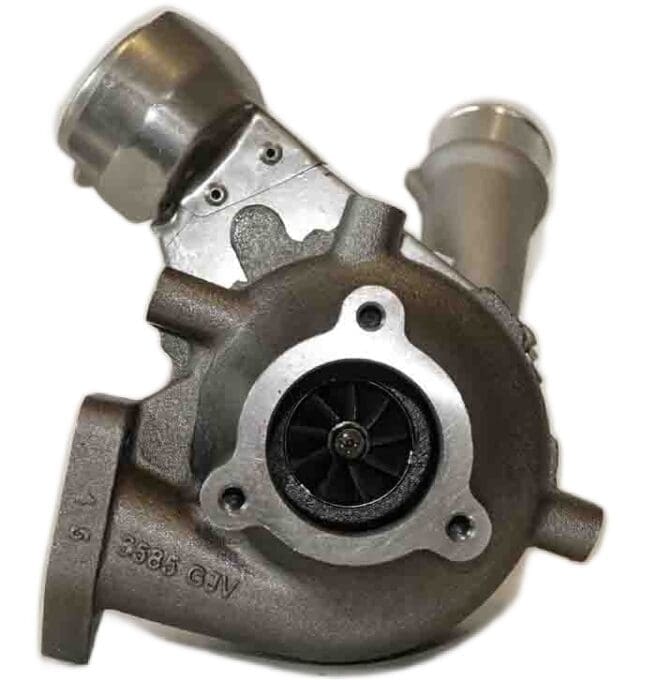

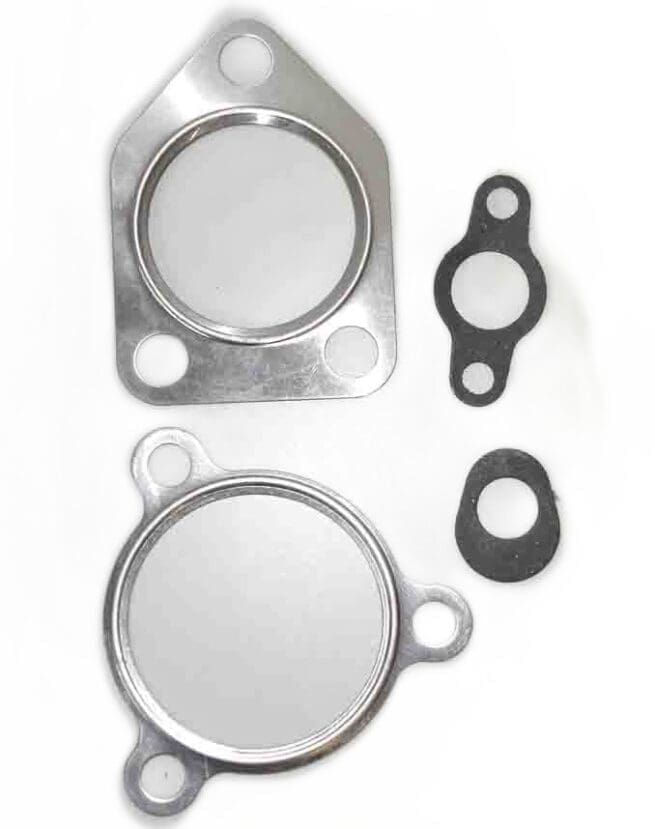

Complete Turbo with UPGRADED BILLET COMPRESSOR (No Tuning Required) + Gaskets.

Vehicle: Turbocharger suitable for:
HYUNDAI:
iLoad TQ WBH7J 2.5L 2007 – 8/2012.
iMax WH81J 2.5L 2/2008 – 7/2012.
H-1 WH81J 2.5L 2007 – 2009.

Engine: D4CB A I 2.5L CRDi 100kW 120kW 125kW Diesel.

WARRANTY:  3 YEARS.

Hyundai OEM Part Number:

28200-4A480 | 282004A480
2074DCBAA419

Turbo Part No:

53039700127 | 5303-9700-127
53039700145 | 5303-9700-145
53039880127 | 5303-9880-127
53039880145 | 5303-9880-145
53039900127 | 5303-9900-127
53039900145 | 5303-9900-145
53039980145 | 5303-9980-145
Housing Casting: 53041014985

Will NOT replace part numbers:
iLoad 2.5L 28230-4A700 | 28231-4A700 | 28500-4A700 found here.
(these fit MY approx 2013 on-ward)
OR
28231-4A750
49131-03600

Compressor Type: CNC-Machined High Flow Billet Impeller / Compressor Wheel.
Top quality aftermarket manufacture on 5-axis, CNC Machine from solid (MFS) Alloy Billet.
Cooling: Oil & Water.
Exhaust Inlet Flange:  3 Bolt.
Exhaust Outlet(dump) Flange:  3 Bolt.

Are you experiencing Hyundai iload, iMax Turbo Problems?
This Billet Upgrade Turbo is engineered to deliver better airflow, quicker spool and stronger throttle response for improved diesel efficiency over worn and faulty original OEM BorgWarner Turbos with part numbers such as 53039700127, 53039700145, 53039900127, 53039980145, and Hyundai OEM part numbers 28200-4A480.
And is an affordable direct fit replacement for D4CB 2.5L Diesel H1 iLoad and IMax vans with build dates to ~mid 2012, without the need for tuning or complex modifications.

Features Free Australia‑wide shipping, Gaskets and an unbeatable 3 Year Warranty for long‑term peace of mind.

Hyundai & Borgwarner Names, Hyundai & Borgwarner OEM Part Numbers & Descriptions added for reference only, with no implication that this product is manufactured by Hyundai & Borgwarner.
