Description
GTA1746LV
(HIGH-FLOW BILLET UPGRADE)
1390067JG1 | 13900-67JG1
1390067JG1000
3900-67JG1
8200506509 | 8200506509B
8200683856
8200732948 | 8200732948A
8200781610
LDM03576F
GTA1746LV
60680
760680-0002 | 760680-2
760680-0003 | 760680-3
760680-0004 | 760680-4
760680-0005 | 760680-5
760680-5002S | 760680-5003S
760680-5004S | 760680-5005S
781616
If unsure of part, please email 17 Digit VIN/Frame Number before purchase.
PLEASE NOTE: There are 2 DIFFERENT turbos for the 1.9L Vitara.

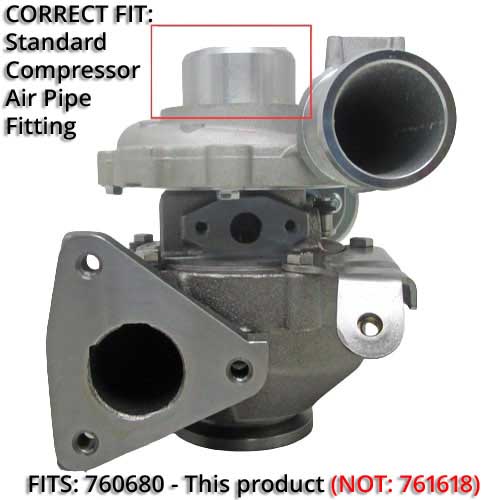

This product has a STANDARD Pipe Fitting on the Compressor Air Intake, NOT a V-Band Clamp.

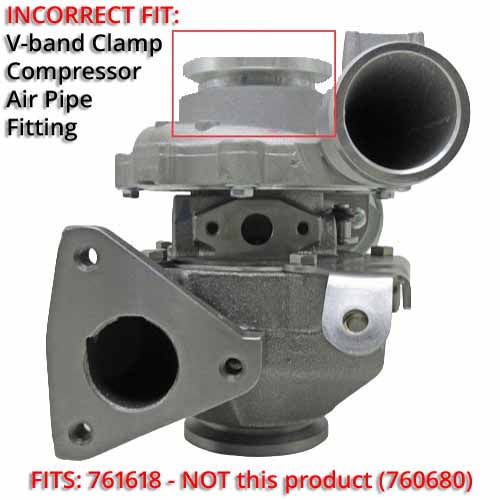

The V-Band Turbocharger (not this one), fits Part: 761618 | Engine: F9Q 264-266 1.9L 127Hp Euro IV engine.
Please check Compressor & Part Numbers off the compressor housing CAREFULLY.
Turbocharger suit:
Suzuki MK Grand Vitara MY Approx. 2005-2015.
Compressor Type: CNC-Machined Aluminium High Flow Billet Impeller / Compressor Wheel
Top quality, aftermarket wheel manufactured from solid (MFS) billet alloy via precision 5 axis CNC machine.
Upgraded Wet Float Journal Bearing.
Engine No: Renault F9Q 264 1.9L DDiS 129Hp.
Approx. MY: 2005 – 2015.
Cooling: Oil & Water.
Exhaust Inlet Flange: 3 Bolt.
Exhaust Outlet(dump) Flange: V-Band.
TURBOCHARGER WARRANTY: 36 MONTHS.
If you are wondering does Grand Vitara have a turbo?, the answer is: the 1.9L MK with the F9Q engine does.
And if you are in need of a replacement turbocharger for your 1.9L MK Suzuki Grand Vitara, you have come the the right place.
Our upgrade replacement turbochargers come with a 3 Year Warranty and are a truly affordable alternative to the original Garrett Turbo.
Thanks.
