Turbochargers suit Hyundai iLoad H1 H-1 iMax 2.5L K03 28231-4A701 53039700655 53039880655 Type 2

Description

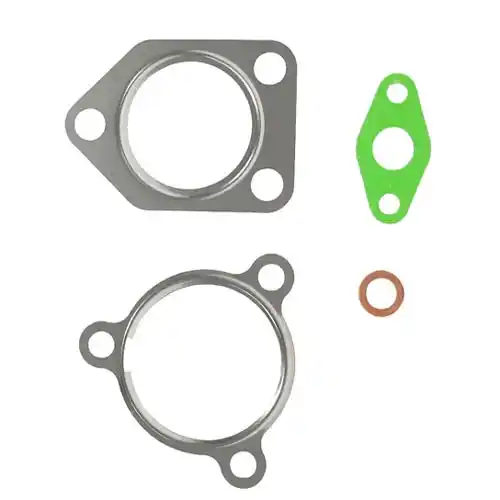

Complete Turbo with Gaskets.

Vehicle: Turbocharger suitable for:
HYUNDAI:
iLoad / H-1 TQ 2.5L 6/2012 – 2021.
iMax TQ 2.5L 6/2012 – 2021.

Engine: D4CB A II 2.5L 125kW Euro 4 Euro 5 Diesel.

TURBOCHARGER WARRANTY:  3 YEARS.

Hyundai OEM Part Number:

28231-4A701 | 282314A701

BorgWarner Turbo Part Number:

53039700353 | 5303-970-0353 (shared Part Number)
53039700655 | 5303-970-0655
53039880655 | 5303-988-0655

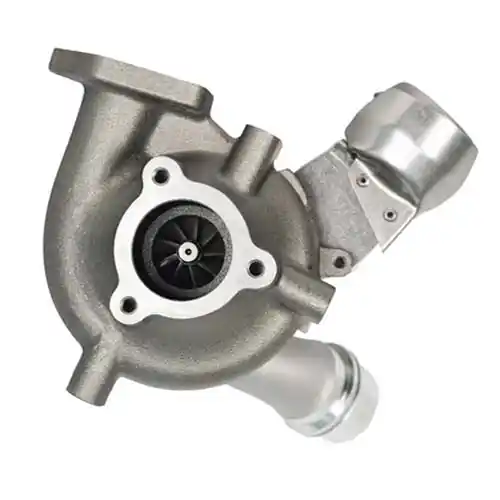

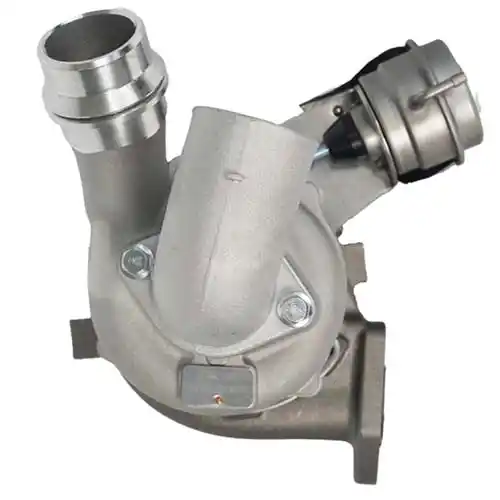

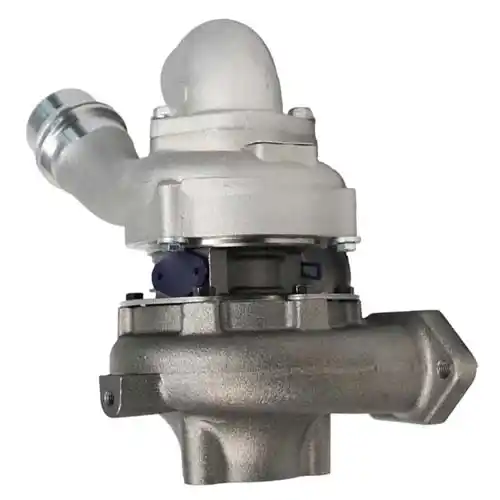

PLEASE NOTE: THIS Turbo 282304A701 / 53039700655 / 53039880655, has Type 2: C-clip (click-on) compressor housing outlet pipe fitting (please see photos).
And will NOT fit Type 1: Standard compressor housing outlet pipe fitting with part numbers:
282304A700 | 282304A700 | 53039700226 found here.
BOTH have SIMILAR OEM part numbers, and both are for the mid 2012 onward iLoad/H1 & iMax.
Please check carefully.
Also, Will NOT replace part numbers:
iLoad 2.5L 28200-4A480 | 53039700127 | 53039700145 | 53039880127 | 53039880145 found here.
(these fit MY approx.: 2007-7/2012)
Nor will it fit: 28231-4A750 (100kW) (not available).

Unsure?: Please email Registration & State.

Cooling: Oil only.
Exhaust Inlet Flange:  3 Bolt.
Exhaust Outlet(dump) Flange:  3 Bolt.

Hyundai & Borgwarner Names, Hyundai & Borgwarner OEM Part Numbers & Descriptions added for reference only, with no implication that this product is manufactured by Hyundai & Borgwarner.
