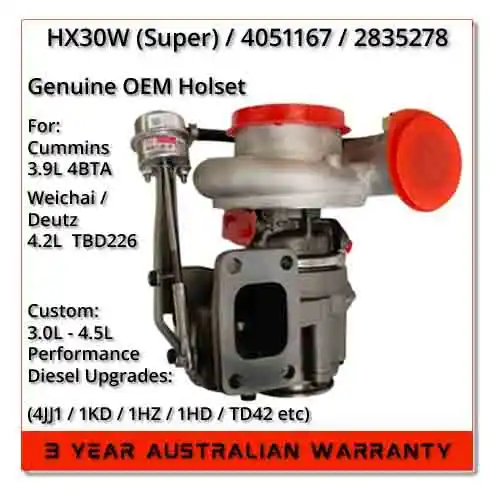

Turbocharger Genuine OEM Holset HX30W SUPER 4051167 2835278 Custom Upgrade Applications & Cummins 4BT 3.9L Weichai Deutz TBD226B 4.2L

Description

Complete Genuine OEM Original Holset Turbo.

Holset Turbo Model:  HX30W “Super”.

Turbocharger Applications:

Various Cummins with 4BTA.
Various Deutz (Weichai) marine, generator, genset, construction, industrial, agricultural.

Suit Custom Applications:

3.0L to 4.5L Engines.
10mm (e.g. 1HZ) & 11mm (e.g. TD42) & 12mm Injector Pumps.

Engine:
Factory Applications:

Cummins 4BTA 3.9L 92kW & DEUTZ TBD226B-4II TBD226B-6 TBD226B-6G / Weichai WP4 WP6 4.2L 118KW Diesel Engine.

Custom Applications:

3.0L: 4JJ1 Isuzu / 1KDFTV Toyota / OM606 Mercedes and more.
4.0L / 4.2L: TD42 Nissan / 1HZ & 1HD & 2H Toyota / MWM Ford and more.

Output: 150kW – 240kW (Depending on Engine, Injection Pump, Injectors and Exhaust etc).

TURBOCHARGER WARRANTY:  3 YEARS.

Holset OEM & Turbo Part Number:
HX30W
13024082
2835278
4051166
4051167
4051210

The HX30 Super turbocharger is the largest in the HX30 range and delivers great performance and high airflow delivery.
Engineered to balance low inertia throttle response and low-end (fast spool-up ~ 1,900 RPM) minimizing Turbo lag, with high-end power delivery.
The best choice for mid-range sized diesel performance builds.

Specifications:

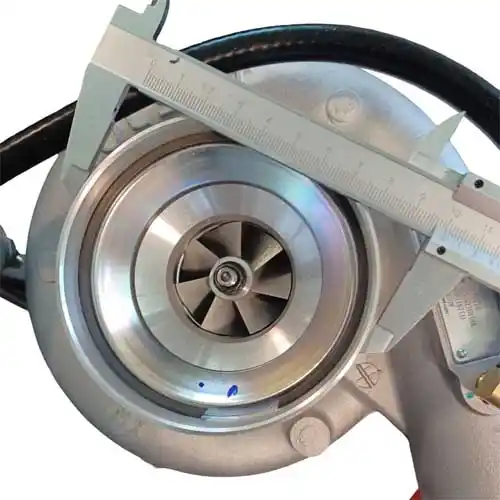

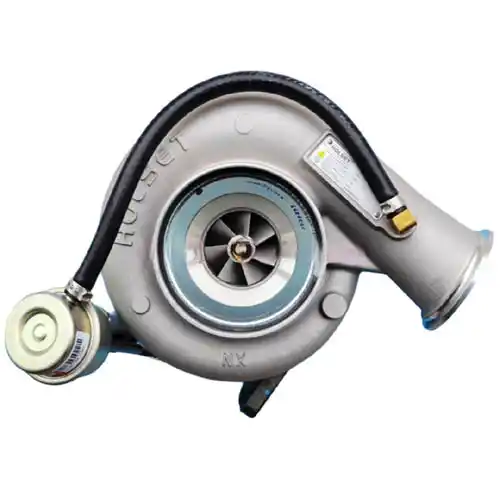

Compressor Wheel:
Inducer: 46 mm.
  (> than standard 40mm-44mm HX30).
Exducer: 78 mm.
Compressor Housing:
Inlet Diameter: ~102 mm.
  (same as most HX35/HE351 & > than 76mm on standard HX30).
Outlet Diameter: 74 mm.
  (same as most HX35/HE351 & > than 64mm on standard HX30).
Turbine Wheel:
Inducer: 65 mm.
Exducer: 52 mm.

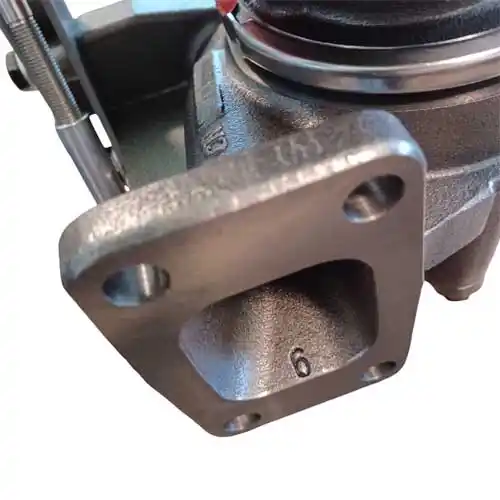

Turbine Housing: 6 cm² (A/R), Single scroll, designed for fast spooling.

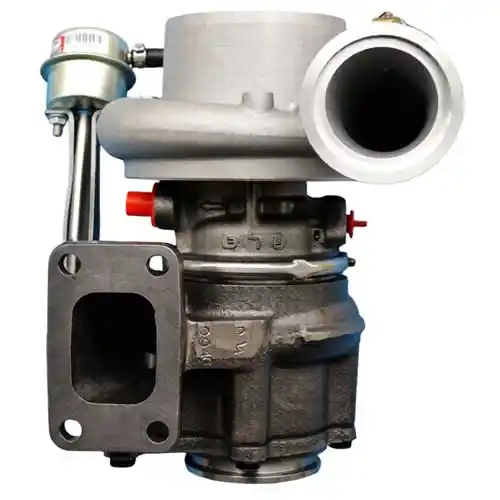

Exhaust Inlet Flange:  4 Bolt T3 Universal.

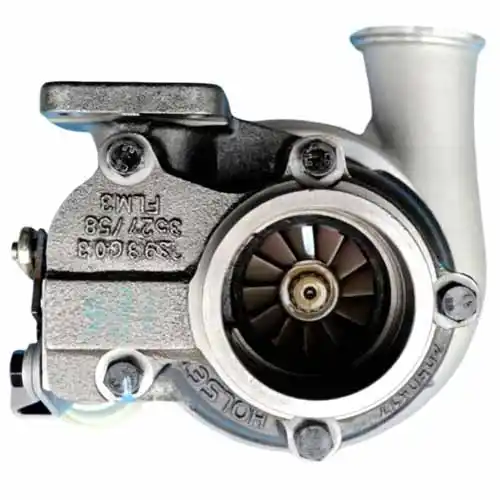

Exhaust Outlet(dump) Flange:  V-Band & 5 Bolts (with V-Band removed).
V-Band Diameters: Inside: ~65mm / Outside: ~80mm.
Cooling: Oil-cooled only.

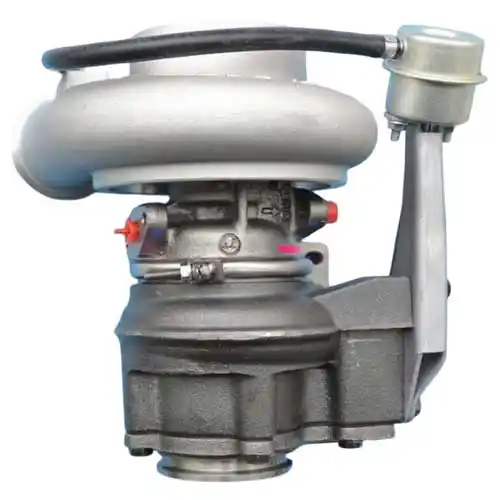

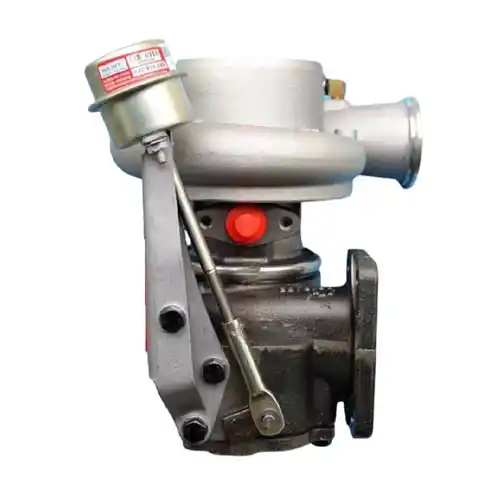

Wastegate: Internal.
Max Boost Pressure: 25-35 psi (approx. & depends on engine and mods in application).

Listed For Sale is the Genuine OEM HOLSET HX30 “SUPER” Turbocharger only.
What Makes it “Super”?
This HX30 has a larger compressor wheel (46mm/78mm) compared to the standard HX30, providing better flow.
Larger Compressor Inlet and Outlet compared to the standard HX30.
Combined with a 6 cm² (A/R) Single scroll Turbine designed for fast spooling.

PLEASE NOTE:
For Custom Upgrade Applications, supporting modifications are required for fitment, with all work carried out by a Professional.
Hardware mods may include (and are not stocked here): Exhaust Manifolds, Injector Pumps (and Injectors if moving to a larger Pump), Larger/Free-Flow Exhaust Systems, Spacers, Mounting Brackets, Oil Feed & Drain Pipes, Intercooling Systems etc.

Covered by our exclusive 3 Year Warranty.(excluding race applications)

Above vehicle & machinery brands and vehicle & machinery models are for use to determine correct or possible fitment, and does not imply that the part is manufactured by such original vehicle & machinery manufacturers.
