Turbocharger suit Ford Falcon BA BF FPV F6 XR6 4.0L GT3576R GT3582R STAGE 2 GTX Dual Ceramic BB HIGH FLOW BILLET UPGRADED

Description

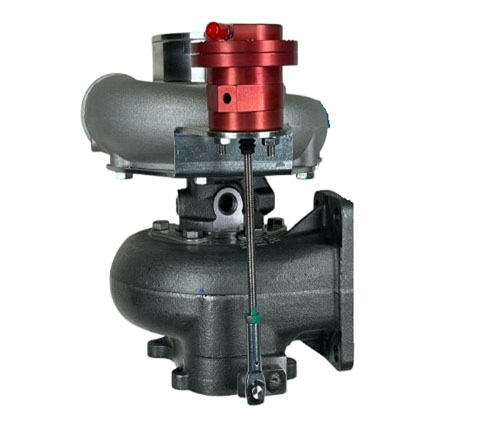

Complete Turbocharger with UPGRADED STAGE 2 BILLET WHEEL.
NOW COMES WITH FREE OIL PIPE & FITTINGS (Worth $139) + Gaskets.
(See note at bottom of page for further information on this offer).
Turbocharger is multi-fit for the below Turbo Models & Vehicles.
(with re-alignment if required: see Fitment Note below)

Suits Garrett Turbo Model: GT3576R GT3576R GT3582R GTX3582R.

Vehicle: Turbocharger suitable for:
Ford Falcon:
BA BF XR6.
FPV F6 Typhoon & Tornado XR6.
9/2002 – 4/2008

Engine: Barra 6 Cyl 4.0L DOHC 240T 240kW 245T 245kW 270T 270kw Turbo Petrol.

Garrett OEM Part Number:
GT3576R:
770596-0001 | 770596-1
770596-0002 | 770596-2
770596-5001 | 770596-5001S
770596-5002 | 770596-5002S
774094-0003 | 774094-3
774094-5003 | 774094-5003S
836033-0003 | 836003-3
836033-5003 | 836003-5003S
GT3582R:
723157-0001 | 723157-1
723157-0002 | 723157-2
723157-0003 | 723157-3
723157-0004 | 723157-4
723157-5001 | 723157-5001S
723157-5002 | 723157-5002S
723157-5003 | 723157-5003S
723157-5004 | 723157-5004S
774094-0001 | 774094-1
774094-5001 | 774094-5001S
836033-0004 | 836033-4
836033-5004 | 836033-5004S

Ford OEM Turbo Part Number:
GT3576R:
8R29-9G438-AB | 8R299G438AB
8R29-9G438-AC | 8R299G438AC
BG-9G438-A | BG9G438A
GT3582R:
3R23-9G438-AB | 3R239G438AB
3R23-9G438-AC | 3R239G438AC
3R23-9G438-AD | 3R239G438AD
BA2-9G438-A | BA29G438A
BA2-9G438-B | BA29G438B

Fitment Note:
Fitment will generally require Alignment of Compressor and/or CHRA.
This can be done via loosening compressor bolts and/or turbine housing bolts (for CHRA realignment when required), and CAREFULLY rotating the housing(s).
Housings can then be tightened by diagonal tightening of bolts.
Actuator bracket can be moved for correct angle of actuator rod (rod must remain vertically orientated, parallel with centre line of CHRA) via the same compressor housing bolts.
And adjustments to the actuator rod length (threaded rod), can be made to fine tune dump flapper (flapper must be in firmly closed position, after any alignments have been completed).

COMPRESSOR:
Wheel Type: 10 Blade GTX High Flow Extended Tip / 2618-T6 forged/milled Solid Aluminum Billet (MFS).
Specs: A/R: 0.72 | Inducer: 67.4mm | Exducer: 84.4mm.
Housing: Machined: Ported shroud with Speed Sensor port.
Pipe Fitting Size:
Inlet: 4.08″/~10.4cm (Factory is 3.0″ pipe – fitment requires a pipe adapter).
Outlet: 2.57″(~5.5cm internal) (Factory is 2.0″ pipe – fitment requires a pipe adapter).

TURBINE:
Specs: A/R: 1.06 | Inducer: 67.75mm | Exducer: 62.3mm.
Wastegate Port: 62mm / Wastegate Flapper: 38mm
Exhaust Inlet Flange:  T3 | 4 Bolt.
Exhaust Outlet(dump) Flange:  5 Bolt (Has INTEGRATED factory Dump, NOT v-band).
Bearing Type: Dual Ceramic Ball Bearing.

IMPORTANT NOTE: Original turbo on Falcon 4.0L usually fails due to blockage in oil feed filter & hence lack of lubrication.
It is a condition of warranty that prior to installing a new turbo, oil feed line must be ultrasonically cleaned at minimum or replaced(recommended).
For replacement, we have a new, complete, upgraded oil feed lines to fit this turbo with integrated restrictor & FILTER included.
(This is more reliable and makes it easier to access & clean at engine oil services).
If fitted, you will need to remove the OEM filter from the oil block (located left side of the engine block), prior to fitting the below oil line with integrated oil filter.
Click here to view (NOW INCLUDED FREE with Turbo purchase) the: Upgraded Falcon 4.0L GT35 Oil Feed line.

TURBOCHARGER WARRANTY: 12 MONTHS.
